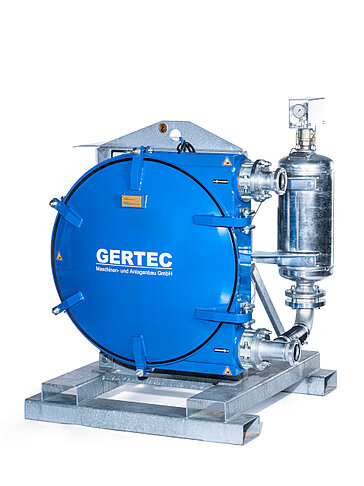

SP-900-F

◀
▶

Technical Data / Performance Data

Flow rate

6-30

m³/h (continuously adjustable)

Discharge pressure

max. 8

bar

Suction lift

max. 8

m

Solids grain size

max. 24

mm

Medium temperature

max. 50

°C

Nominal hse diameter

70

mm

Suction connection

Storz B

3“ standard coupling DIN 14307,

alternatively 3“ AG, flange DN80 PN16

Pressure connection

Storz B

3“ standard coupling DIN 14307,

alternatively 3“ AG, flange DN80 PN16

Power connection

CEE-plug

32 A, 5-pole

Power input

11

KW

Voltage

400

V; 50 Hz

Transport dimensions

1,25 x 1,35 x 1,66

m ( L x W x H)

Weight

approx.900

kg

Application areas:

  • Building construction and Civil engineering
  • Special foundation engineering, Tunnelling

Pumping of:

  • Light mortar
  • Foam concrete
  • Slurries
  • Dirty water or other solid-containing slurries

Characteristics:

  • dry running
  • self-priming
  • reversible
  • flow rate continuously adjustable
  • high productivity
  • high operating reliability
  • easy wear compensation of the hose pump via easy eccentric adjustment
  • central lifting eye for crane handling
  • forklift and lift truck handling from long side
