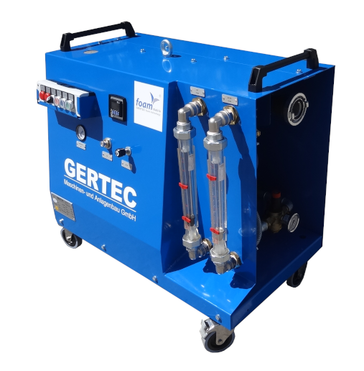

SG-50-E
Technical Data / Performance Data
Foaming capacity 2) | 20 - 50 | l/min | Manual adjustable |
Foam density 2) | 30 - 100 | g/dm3 | Manual adjustable |
Foam agent dosage | 0,8 – 5,5 | % | Manual adjustable |
Water connection | GEKA-coupling | 3/4“, NW 17 | Required pipe pressure: > 2,0 bar |
Water amount required | 7 | l/min |
|
Compressed air connection | NW 7,2 | plug DIN EN ISO 228-1 | Required pipe pressure: > 6,0 bar |
Air volume required | 60 | l/min at 4 bar |
|
Pressure connection foam | 1“ | DN 25 IG | alternatively, RD 32 round thread AG |
Power connection | CEE-plug | 16 A | 5-pole with phase inverter |
Voltage | 400 | V; 50Hz |
|
Protection class | 65 | IP |
|
Cable length remote control | 10 | m |
|
Dimensions | 0,9 x 0,6 x 0,9 | m | l x w x h |
Weight | ca. 96 | Kg |
|
1) The specified performance data are non-binding values that differ significantly depending on their respective product features.
2) The specified engine power depends on the foam density and of their respective product features.
Application areas:
- Production of foam
- Production of foam concrete screed
- Production of light levelling mortar
- Production of foam concrete stones
