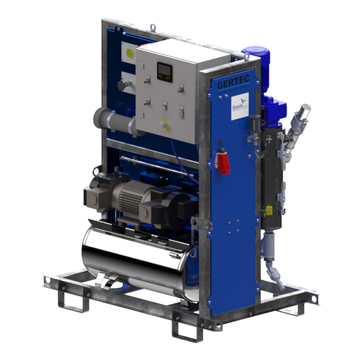

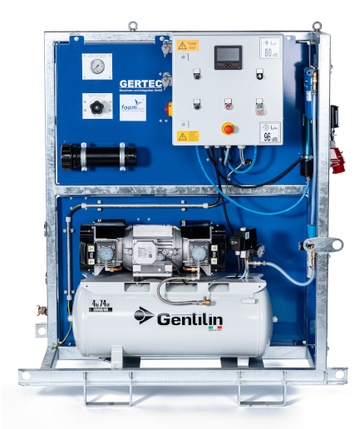

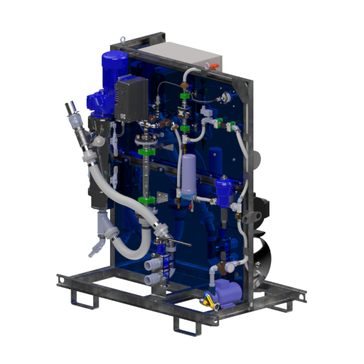

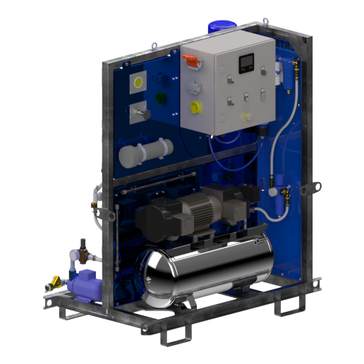

SBM-10-E
◀
▶
Technical Data / Performance Data
Mixing capacity 1,2) | 5,0 – 10,0 = 83 – 167 | m³/h | adjustable |
Density wet 1,2) | approx. 200 - 700 | kg/m³ |
|
Density dry 1,3) | ca. 150 - 600 | kg/m³ |
|
Output foam generator 1,2) | 80 - 180 | l/min | adjustable |
Foam density 1,2) | 30 - 80 | kg/m³ | adjustable |
Foaming agent rate | 0,5 – 4,0 | % | manuell adjustable |
Water consumption | max. 15 | l/min |
|
Slurry demand 4) | max. 60 | l/min |
|
Water connection | GEKA claw-coupling | 1“ (DN25) |
|
Connection transport hose (foam concrete) | Storz C | 2“ standard coupling DIN14307 (DN50) |
|
Power connection | 16 A, | CEE-plug 5- pole with phase inverter |
|
Power input | max. 6,4 | kW |
|
Voltage | 400 | V; 50 Hz |
|
Transport dimensions | 1,5 x 1,8 x 0,9 | m | L x W x H |
Weight | ca. 400 | kg |
|
Application areas:
- Production of foamed concrete
- Production of foamed screed
- Production of mineral foam
- Production of foamed concrete blocks
- Production of light levelling mortar
- Production of mineral insulation
- Cavity filling
