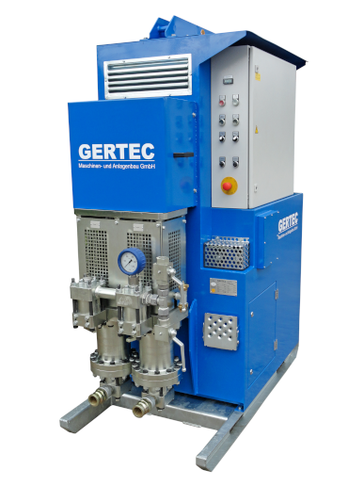

PP-150-E-PN90 (90 bar)
◀
▶
Technical Data / Performance Data
| Flow rate | 0-300 | l/min continuously adjustable |
| Discharge pressure | max. 90 | bar continuously limited |
| Solids grain size | max. 2 | mm |
| Pressure connection | 42L | EO24° (IG 1½“) |
| Suction connection | Storz C | 2“ standard coupling DIN14307,alternatively 2“ IG |
| Power connection | CEE-plug | 63A, 5-pole with phase inverter |
| Power input | 32,0 | KW |
| Voltage | 400 | V; 50 Hz |
| Dimensions | 1,8 x 1,1 x 2,1 | m ( L x W x H) |
| Weight | approx.1560 | kg |
Application areas:
- Sealing, gap and conduct grouting
- Anchor injection, ground stabilization, rock injection
- Drill injection
- Jet grouting, pipe roof grouting
- Cavity filling Micro tunnelling
Discharge and grouting of :
- Cement, bentonite and tone slurries, water glass or other gels
- Cement slurries, anchor grout
- Bentonite and tone slurries
- Cement slurries
- Cement and fly ash slurries
- Bentonite, cement and insulation slurries
