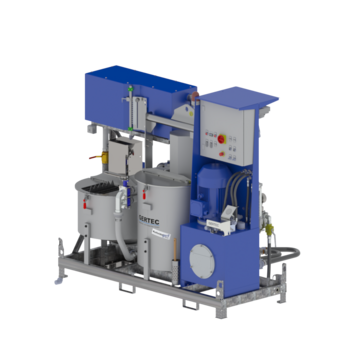

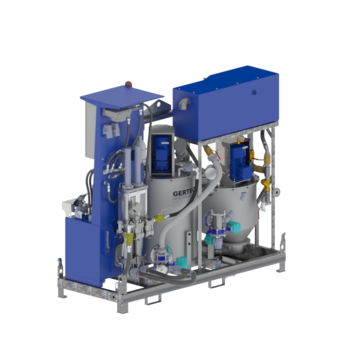

IS-80-E
◀
▶
Technical Data /Performance Data
Mixing capacity (20 batches/h) | 3 | m³/h |
Effective mixer volume | 150 | l |
Mixing water minimum | 95 | l |
Mixer filling level (bag loading) | 940 | mm |
Buffer tank volume | 300 | l |
Water tank volume | 150 |
|
Flow rate plunger pump | 0 – 95 | l/min, electrically continuously adjustable |
Discharge pressure plunger pump | max. 100 | bar, electrically continuously limited |
Solids grain size | max. 2 | mm |
Pressure connection plunger pump | 1“ | IG |
Water connection | Storz C | 1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-plug | 2x 32 A, 5-pole with phase inverter |
Power input | 23,5 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 2,26 x 0,85 x 2,1 | m ( L x B x H) |
Weight | approx. 1200 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
