IS-80-3-EC-E

◀

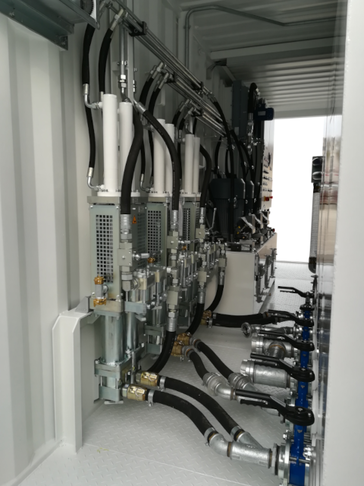

grout plan microtunneliing GERTEC IS-80-3-EC pipe jacking
▶
grout plan microtunneliing GERTEC IS-80-3-EC pipe jacking

Technical Data / Performance Data

Mixing capacity (20 batches/h)

15

m³/h

Effective mixer volume

750

l

Mixing water minimum

250

l

Mixer filling level (bag loading)

1330

mm

Capacity each agitator tank (I + II)

2000

l   (total 4000 l)

Flow rate each pump (I + II + III)

0 – 95

l/min, electrically continuously adjustable

Discharge pressure each pump

(I + I + III)

100

bar, mechanically  continuously limited

Solids grain size

max. 2

mm

Pressure connection pump

 (3x) 1“

IG

Water connection

Storz C

2 ½“ standard coupling DIN14307,         max.6 bar;

Cleaning connection

DN 25

Geka-claw coupling

Power connection

150

A  (terminal block in electrical cabinet)

Power input

 75

kW

Voltage

400 V / 50 Hz



Dimensions

6,05 x 2,43 x 2,59

m ( L x W x H)

Weight

approx. 6220

kg

Application areas:

  • Micro tunnelling
  • Pipe jacking
  • Bentonite lubrication

Mixing of:

Bentonite slurries
