IS-80-3-EAC (fully automatic)
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 12,75 | m³/h (see example calculation) |
Effective mixer volume | 750 | l |
Mixing water minimum | 250 | l |
Mixer filling level (bag loading) | 1400 | mm |
Capacity each agitator tank (I + II) | 2000 | l (4000 l overall) |
Flow rate each pump (I + II + III) | 0 – 95 | l/min, electrically continously adjustable |
Discharge pressure each pump (I + II + III) | 100 | bar, continuosly limited |
Solid grain size | max. 2 | mm |
Amount of mixing components | 2 | 1 liquid, 1 solid (bentonite) additives dosage manually |
Pressure connection pump | (3x) 1“ | IG |
Water connection | Storz C | 2 ½“ standard coupling DIN14307, max.6 bar; |
Cleaning conneciton | DN 25 | Geka-claw coupling |
Power connection | 160 | A (terminal box in control cabinet) |
Power input | approx. 76 | kW |
Voltage | 400 | V; 50 Hz |
Dimensions | 6,05 x 2,43 x 2,59 | m ( L x W x H) |
Weight | approx. 6000 | kg |
Application areas:
- Micro tunneling
- Pipe jacking
- Bentonit lubrication
Mixing of:
- Bentonit slurrys
Description:

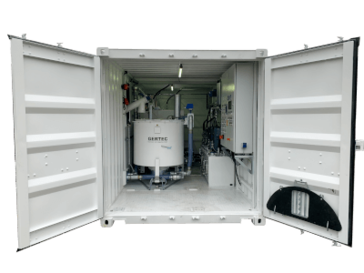

The grout plant IS-80-3-EAC is a specifically developed container based automatic mixing and grouting plant for construction sites. The grout plant is particularly suitable for mixing and grouting of bentonite slurries. In automatic operation mode the grout plant can automatically produce slurries according to stored formulas, pump them into the agitator tank and stores them for the injection pump. Processing of bagged goods is also possible.
