IS-60-EA-VA (fully automatic, Water tank)

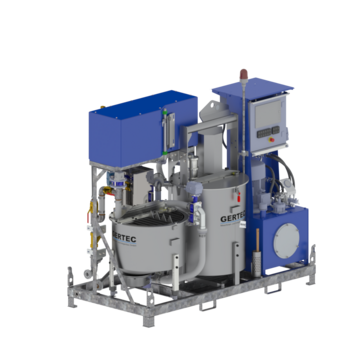

grout plant GERTEC IS-60-EA-VA-WT
grout plant GERTEC IS-60-EA job site

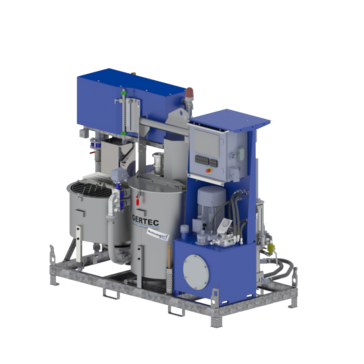

grout plant GERTEC IS-60-EA-VA-WT
grout plant GERTEC IS-60-EA job site

Technical Data /Performance Data

Mixing capacity (20 batches/h)

3

m³/h

Amount mixing components

(automatic operation)

2

1 x fluid

1 x solid

Effective mixer volume

150

l

Mixing water minimum

50

l

Mixer filling level (bag loading)

940

mm

Buffer tank volume

300

l

Water tank volume

150

l

Flow rate plunger pump

0 - 50

l/min, electrically continuously adjustable

Discharge pressure plunger pump

max. 100

bar, manually continuously limited

Solids grain size

max. 2

mm

Pressure connection plunger pump

1“

IG

Water connection

Storz C

1 ½“ standard coupling DIN14307,         max.6 bar; or Geka-claw coupling

Cleaning connection

DN 25

Geka-claw coupling

Power connection

CEE-plug

32 A, 5-pole with phase inverter

Power input

16

KW

Voltage

400

V; 50 Hz

Start/Stop signal cement auger

Harting plug

4-pole

Dimensions

2,35 x 0,95 x 2,1

m ( L x W x H)

Weight

 approx. 980

kg

Application areas:

  • Anchor injection
  • Grouting
  • Cavity filling
  • Micro tunnelling
  • Ground injection
  • Bentonite lubrication

Mixing of:

  • Cement slurries
  • Anchor grout
  • Bentonite slurries
  • Filling material for peripheral sealing
  • Insulation slurries
  • Fly-ash slurries

Description:

The grout plant IS-60-EA is specifically developed compact automatic mixing and grouting plant for construction sites. The grout plant is particularly suitable for mixing and grouting of bentonite, cement, insulation slurries and sealing wall components or other fluid containing suspensions. In automatic operation the grout plant can automatically produce suspensions according to stored formulas, pumps them into the agitator tank and stores them for the injection pump. Processing of bagged goods is possible.
