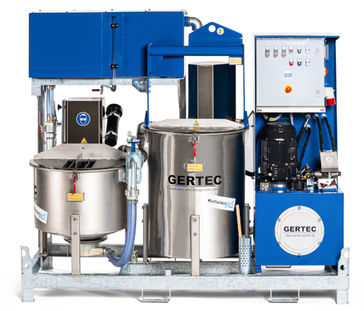

IS-60-E-VA (water tank)
Technical Data /Performance Data
Mixing capacity (20 batches/h) | 3 | m³/h |
Effective mixer volume | 150 | l |
Mixing water minimum | 50 | l |
Mixer filling level (bag loading) | 940 | mm |
Buffer tank volume | 300 | l |
Water tank volume | 150 | l |
Flow rate plunger pump | 0 - 50 | l/min, electrically continuously adjustable |
Discharge pressure plunger pump | max. 100 | bar, manually continuously limited |
Solids grain size | max. 2 | mm |
Pressure connection plunger pump | 1“ | IG |
Water connection | Storz C | 1 ½“standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-plug | 32 A, 5-pole with phase inverter |
Power input | 16 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | ca. 2,35 x 0,95 x 2,1 | m ( L x B x H) |
Weight | approx. 930 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
Description:
The grout plant IS-60-E is specifically developed compact automatic mixing and grouting plant for construction sites. The grout plant is particularly suitable for mixing and grouting of bentonite, cement, insulation slurries and sealing wall components or other fluid containing suspensions
