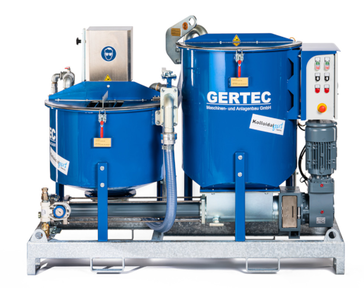

IS-38-E
◀
▶
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 3,0 | m³/h |
Effective mixer volume | 150 | l |
Mixing water minimum | 50 | l |
Mixer filling level (bag loading) | 1000 | mm |
Buffer tank volume | 300 | l |
Flow rate speed 1 | approx. 37 | l/min |
Flow rate speed 2 | approx. 75 | l/min |
Discharge pressure | max. 24 | bar |
Solids grain size | max. 2 | mm |
Pressure connection | VT 1“; type 25 | motar coupling VT 1“, alternatively 1“ IG |
Water connection | Storz C | 1½ “ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-plug | 16 A, 5-pole with phase inverter |
Power input | 7,1 | KW |
Voltage | 400 | V; 50 Hz |
Working dimensions | 1,85 x 0,81 x 1,5 | m ( L x W x H) |
Weight | approx. 430 | kg |
Application areas:
- Geothermal application (peripheral filling for geothermal probes)
- Well construction (seal water sealing, backfilling)
- Micro tunnelling (delivery and injection of slurries, cavity filling)
- Special civil engineering (delivery and injection of slurries, cavity filling)
- Road works (delivery of drainage asphalt)
