IS-35-EF

Grout plant Grouting system Anchor Strand anchor Strand tensioning method Ischebeck Self-drilling anchor
Grout plant Grouting system Anchor Strand anchor Strand tensioning method Ischebeck Self-drilling anchor

Technical Data / Performance Data

Mixing capacity (20 batches/h) 2)

3,0

m³/h

bagged goods

Effective mixer volume

 50 - 150

l



Mixing water minimum

50

l



Mixer filling level (bag loading)

1000

mm



Buffer tank volume

200

l



Delivery rate pump

17 - 50

l/min

stepless adjustable (frequency-controlled)

Delivery pressure continuous operation

max. 40

bar



Delivery pressure short-time operation

max. 50

bar



Solids grain size

max. 2

mm



Water connection

Storz C

DN50-2“

standard coupling DIN14307, max. 6 bar

Power connection

CEE-plug

32 A

5-pole with phase inverter

Pressure connection transfer pump

VT-1“

type 25

mortar coupling, alternatively 1“ IG

Power input

ca. 11,5

kW



Voltage

400



VAC, 50 Hz

Transport dimensions

1,62 x 0,82 x 1,44

m

L x W x H

Working dimensions

2,21 x 0,82 x 1,44

m

L x W x H

Weight

approx. 485



kg

Application areas:

  • Special civil engineering (delivery and injection of slurries, cavity filling)
  • Micro tunnelling (delivery and injection of slurries, cavity filling)
  • Geothermal application (peripheral filling for geothermal probes)
  • Well construction (seal water sealing, backfilling)
  • Road works (delivery of drainage asphalt)

Mixing and grouting of:

  • Cement slurries
  • Filling materials for peripheral filling
  • Bentonite slurries
  • Insulating slurries
  • Fly ash slurries
  • Anchor grout

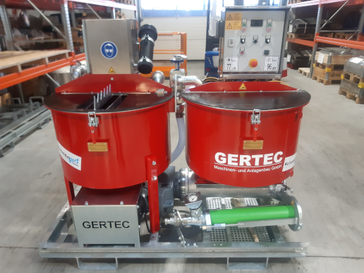

Description:

The Grout Plant IS-35-EF is a compact mixing and grouting plant with buffer tank and integrated grouting pump. It is suitable for mixing and grouting of cement slurries or other solid-content slurries. The flow rate is step less adjustable by the frequency-controlled grouting pump.
