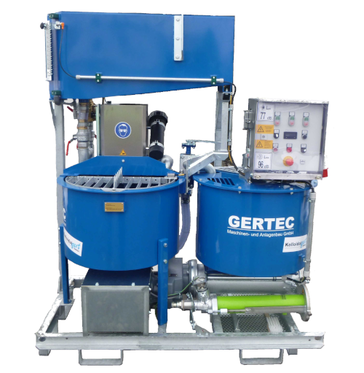

IS-35-EF (water tank)
◀
▶
Technical Data / Performance Data
| Mixing capacity (20 batches/h) | 3,0 | m³/h |
| Effective mixer volume | 150 | l |
| Mixing water minimum | 50 | l |
| Mixer filling level (bag loading) | 1000 | mm |
| Buffer tank volume | 300 | l |
| Flow rate | 0 - 100 | l/min stepless adjustable |
| Discharge pressure continuous operation | max. 30 | bar |
| Discharge pressure short-term operation | max. 35 | bar |
| Solids grain size | max. 2 | mm |
| Pressure connection | VT 1“; type 25 | mortar coupling VT 1“,alternatively 1“IG |
| Water connection | Storz C | 2“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
| Cleaning connection | DN 25 | Geka-claw coupling |
| Power connection | CEE-plug | 32 A, 5-pole with phase inverter |
| Power input | 11,5 | KW |
| Voltage | 400 | V; 50 Hz |
| Transport dimensions | 1,70 x 0,84 x 2,14 | m ( L x W x H) |
| Working dimensions | 2,45 x 0,84 x 2,14 | m ( L x W x H) |
| Weight | approx. 730 | kg |
Application areas:
- Geothermal application (peripheral filling for geothermal probes)
- Well construction (seal water sealing, backfilling)
- Micro tunnelling (injection, grouting, cavity filling)
- Special civil engineering (injection, grouting, cavity filling)
- Road works (backfilling, drainage asphalt)
Mixing of:
- Filling materials for peripheral filling
- Cement slurries
- Bentonite slurries
- Mineral insulating slurries
- Fly ash slurries
- Anchor grout
