IS-35-EF-big
Technical Data / Performance Date
Mixing capacity (20 batches/h) 2) | 5,6 | m³/h | bagged goods |
Effective mixer volume | 60 - 280 | l |
|
Mixing water minimum | 60 | l |
|
Mixer filling level (bag loading) | 1100 | mm |
|
Buffer tank volume | 560 | l |
|
Delivery rate pump | 20 - 100 | l/min | stepless adjustable (frequency-controlled) |
Delivery pressure continuous operation | max. 30 | bar | |
Delivery pressure short-time operation | max. 35 | bar |
|
Solids grain size | max. 2 | mm |
|
Water connection | Storz C | 1½“ | standard coupling DIN14307, max. 6 bar |
Water tank | 280 | l | water dosage |
Power connection | CEE-plug | 32 A | 5-pole with phase inverter |
Pressure connection transfer pump | VT-1“ | type 25 | mortar coupling, alternatively 1“ IG |
Power input | appr. 14 | kW |
|
Voltage | 400 | V | 50 Hz |
Transport dimensions | 2,33 x 1,44 x 2,20 | m | L x W x H |
Working dimensions | 2,83 x 1,44 x 2,20 | m | L x W x H |
Weight | approx. 1100 | kg |
Application areas:
- Special civil engineering (delivery and injection of slurries, cavity filling)
- Micro tunnelling (delivery and injection of slurries, cavity filling)
- Geothermal application (peripheral filling for geothermal probes)
- Well construction (seal water sealing, backfilling)
- Road works (delivery of drainage asphalt)
Mixing and grouting of:
- Cement slurries
- Filling materials for peripheral filling
- Bentonite slurries
- Insulating slurries
- Fly ash slurries
- Anchor grout
Description:

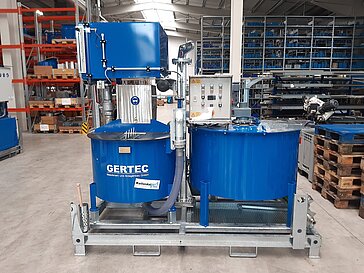

The Grout Plant IS-35-EF-big is a compact mixing and grouting plant with buffer tank and integrated grouting pump. It is suitable for mixing and grouting of cement slurries or other solid-content slurries. The flow rate is step less adjustable by the frequency-controlled grouting pump.
