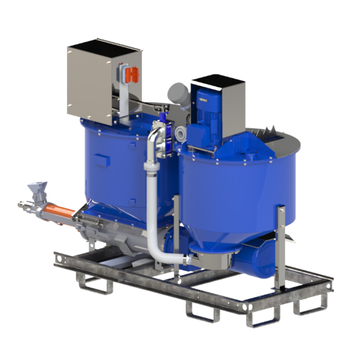

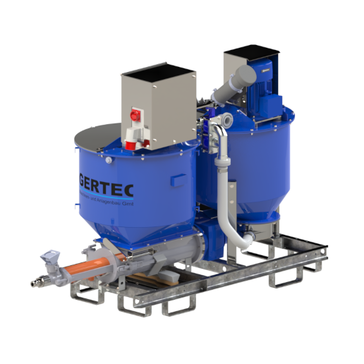

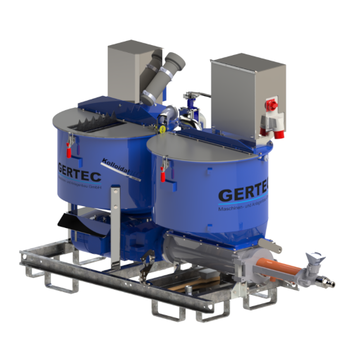

IS-35-E

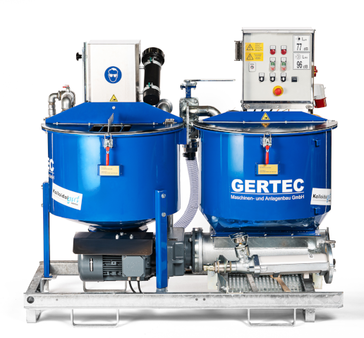

simple robust grout plant  GERTEC IS-35-E-light annular space filling Geothermal probe
simple robust grout plant  GERTEC IS-35-E-light annular space filling Geothermal probe

Technical Data / Performance Data

Mixing capacity (20 batches/h)

3,0

m³/h

Effective mixer volume

150

l

Mixing water minimum

50

l

Mixer filling level (bag loading)

1000

mm

Buffer tank volume

200

l

Flow rate speed 1

approx. 32

l/min

Flow rate speed 2

approx. 65

l/min

Discharge pressure max.

max. 50

bar

Solids grain size

max. 2

mm

Pressure connection

VT 1“; type 25

mortar coupling VT 1“,alternatively 1“IG

Water connection

Storz C

1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling

Cleaning connection

DN 25

Geka-claw coupling

Power connection

CEE-plug

32 A, 5-pole with phase inverter

Power input

12,3

KW

Voltage

400

V; 50 Hz

Transport dimensions

1,62 x 0,82 x 1,44

m ( L x W x H)

Working dimensions

2,21 x 0,82 x 1,44

m ( L x W x H)

Weight

 approx.445

kg

Application areas:

  • Geothermal application (peripheral filling for geothermal probes)
  • Well construction (seal water sealing, backfilling)
  • Micro tunnelling (injection, grouting, cavity filling)
  • Special civil engineering (injection, grouting, cavity filling)
  • Road works (backfilling, drainage asphalt)

  Mixing of:

  • Filling materials for peripheral filling
  • Cement slurries
  • Bentonite slurries
  • Mineral insulating slurries
  • Fly ash slurries
  • Anchor grout
