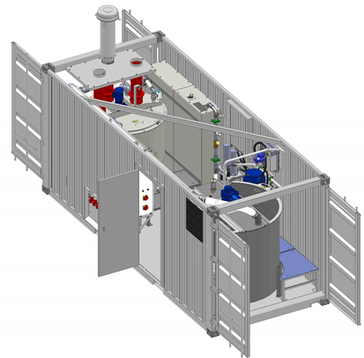

IS-150-EAC
◀
▶
Technical Data /Performance Data
Mixing capacity (15 batches/h) | ca. 22,5 | m3/h |
Effective mixer volume | 1500 | l |
Mixing water minimum | 500 | l |
Water tank volume | 1400 | l |
Buffer tank volume | 3000 | l |
Flow rate water dosing pump | approx. 1000 | l/min |
Flow rate | 0 – 370 | l/min, electrically infinitely adjustable |
Discharge pressure | max. 90 | bar, electrically infinitely adjustable |
Grain size | max. 2 | mm |
Pressure connection | 1 1/2 “ | IG |
Number of mixing components | 3 | 1 liquid 2 solids |
Water connection | 3" | Storz B standard coupling DIN14307 |
Cleaning connection | DN 25 | GEKA claw coupling |
Power connection | 2 x 125 A | terminal block, 5-pole |
Max. power input | approx. 95 | kW |
Voltage | 400 V / 50 Hz | 3~ |
Dimensions | 6,0 x 2,44 x 2,6 | m ( L x B x H) |
Weight | approx. 7600 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
