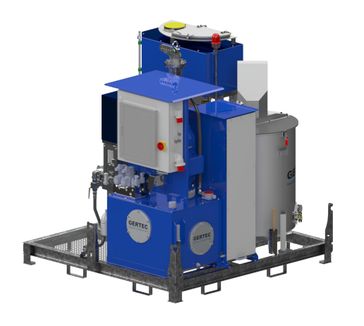

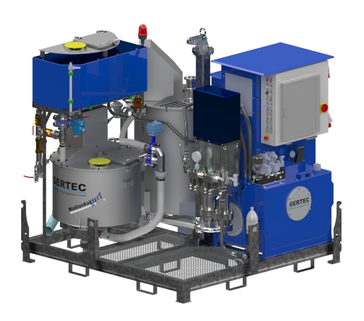

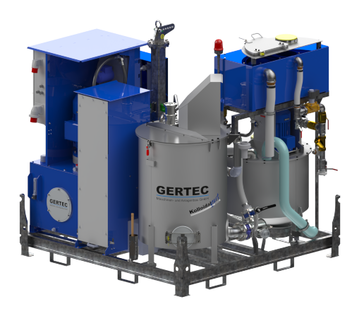

IS-100-EA (fully automatic)
◀
▶
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 3,0 | m3/h |
Effective mixer volume | 150 | l |
Mixing water minimum | 50 | l |
Water tank capacity | 150 | l |
Agitator tank capacity | 300 | l |
Flow rate | 0 – 200 | l/min, electr. continuously adjustable |
Discharge pressure | max. 100 | bar, electr. continuously limited |
Solids grain size | max. 2 | mm |
Pressure connection | 11/4“ | IG |
Amount mixing components | 2 | 1 liquid 1 solid |
Water connection | Storz C | 2“ standard coupling DIN14307 |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-plug | 1 x 63 A, 5-pole |
Power input | 25 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 2,4 x 1,61 x 2,3 | m ( L x W x H) |
Weight | approx. 1.700 | kg |
Application areas:
- Anchor injection
- Grouting
- Ground injection
- Flushing
- Pile driving and jolt work
Mixing of:
- Cement suspension
- Anchor grout
- Bentonite suspension
- Insulation suspension
- Fly ash suspension
