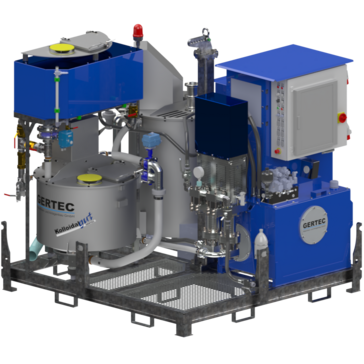

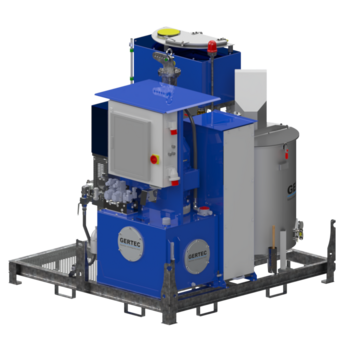

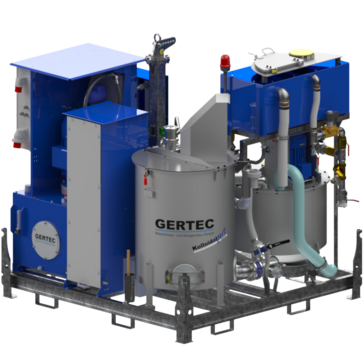

IS-100-EA-big (fully automatic)
◀
▶
Technical Data /Performance Data
Mixing capacity (20 batches/h) (w/s ratio 1.0) | approx. 5,6 | m³/h |
Effective mixer volume | 280 | l |
Mixing water minimum | 90 | l |
Water tank volume | 250 | l |
Buffer tank volume | 560 | l |
Flow rate | 0 – 200 | l/min, electrically continuously adjustable |
Discharge pressure | approx. max. 100 | bar, electrically continuously limited |
Grain size | max. 2 | mm |
Pressure connection | 1 1/2 “ | IG |
Amount mixing components | 2 | 1 liquid 1 x solid |
Water connection | Storz C | 2 “standard coupling DIN14307 |
Cleaning connection | DN 25 | Geka claw coupling |
Power connection | CEE-plug | 63 A, 5-pole |
Power input | approx. 31 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 2,27x2,28x2,39 | m (L x B x H) |
Weight | approx. 2.300 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
