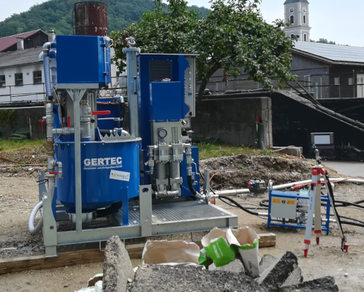

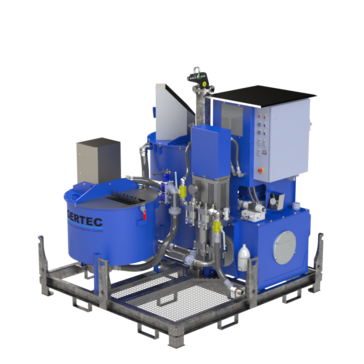

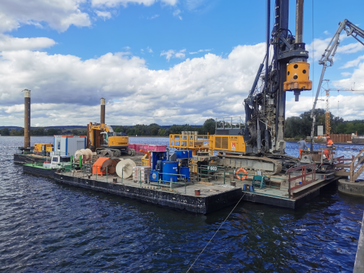

IS-100-E-big (stainless steel)
◀
▶
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 5,6 | m³/h |
Effective mixer volume | 280 | l |
Mixing water minimum | 90 | l |
Mixer filling level (bag loading) | 870 | mm |
Buffer tank volume | 560 | l |
Water tank capacity | 250 | l |
Flow rate | 0 - 200 | l/min, continuously adjustable |
Discharge pressure | max.100 | bar, continuously limited |
Solids grain size | max. 2 | mm |
Pressure connection | 1 ¼“ | IG |
Water connection | Storz C | 2“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-plug | 63 A, 5-pole |
Power input | 29 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 2,04 x 2,17 x 2,4 | m ( L x W x H) |
Weight | approx. 1960 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly ash slurries
