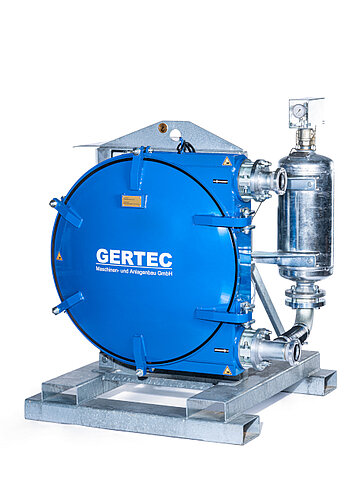

SP-900-1
Technical Data / Performance Data
flow rate | 30 | m³/h |
discharge pressure | max. 8 | bar |
suction lift | max. 8 | m |
solids grain size | max. 24 | mm |
medium temperature | 50 | °C |
nominal diameter of hose | 70 | mm |
suction connection | Storz B | 3“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 |
pressure connection | Storz B | 3“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 |
power connection | CEE-plug | 32 A, 5-pole |
power input | 11 | kW |
voltage | 400 | V; 50 Hz |
dimensions | 1,25 x 1,35 x 1,66 | m ( L x B x H) |
weight | ca.800 | kg |
Application areas:
• Special foundation engineering, Tunnelling
(bored pile, cut-off wall, jet grouting)
• Biogas production
Pumping of:
• Bentonite slurries, drilling fluids,
sealing wall slurries, groundwater,
mortar, slurries, dirty water;
cement, fly ash or other solid-
containing slurries
• Return suspensions
• Slurries
• Biomasses, Press water
Characteristics:
• dry running
• self-priming
• reversible
• low pulsation
• high productivity
• high operating reliability

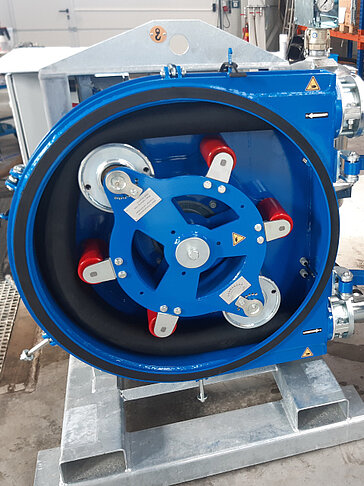

• easy wear compensation of the hose pump via eccentric adjustment
• central lifting eye for crane handling
• forklift handling from long and transverse side, lift truck handling from long side
