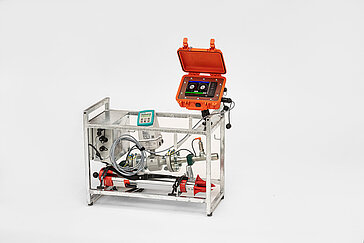

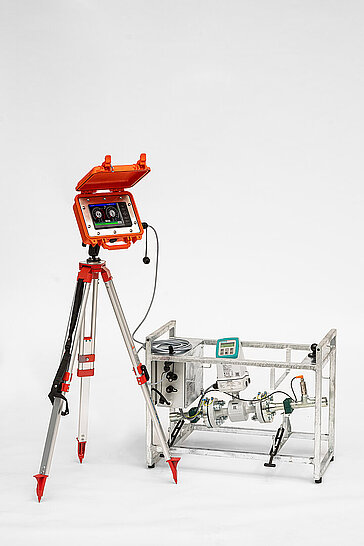

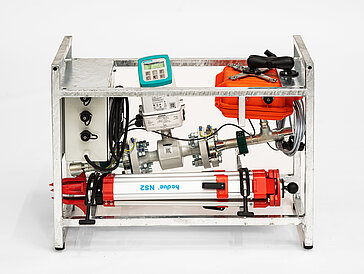

GERLOGG PN100

◀
▶

Technical Data

Nominal diameter

DN 25

mm

Pressure

max. 100

bar

Recommended / flow  rate max.

5 – 150/

250

l/min

Admissible temperature range

 -10 bis +50

C°

Protection class

IP 65



Recorded data

Flow rate

Process, maximum value, average

Recorded data

Quantity

Process, total quantity

Recorded data

Grouting pressure

Process, maximum value, average

Recorded data

Grouting duration

Date, start time, stop time, duration, pause time

Recorded data

Bore hole number



Input construction site data (comments)

Name of construction site, section, site supervisor, client, device

alphanumeric

Pressure connection

1“ IG DN 25 BSPP

alternatively SAE-Flange 1“ IG 6000psi

USB

2.0 connector



Power connection

Safety plug

CEE 7/4

Voltage

230

V; 50 Hz

Dimensions (with/without tripod)



1020 x 350 x 650

810 x 350 x 550

mm ( L x W x H)

Weight (with/without tripod)

approx. 50 / 46

kg

Application area:

  • Recording, storage and analyzing grouting data during grouting and injection work.
