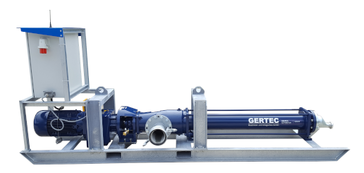

EP-700-E
◀
▶
Technical Data / Performance Data
Flow rate | 150-700 | l/min continuously adjustable |
Discharge pressure | max. 12 | bar |
Slurry density | max. 1,9 | kg/dm³ |
Solid grain size | max. 2 | mm |
Suction connection | DN 150 | Perrot coupling MT |
Pressure connection | DN 50 | 2“ AG |
Power connection | CEE-standard plug | 63 A, 5-pole |
Voltage | 400 | V; 50 Hz |
Power input | 31 | kW |
Dimensions | 4000 x 880 x 1600 | mm ( L x W x H) |
Weight | ca. 1.370 | kg |
Application areas:
Pumping and injecting of bentonite, cement and other solid-containing slurries.
Description:
The EP-700-E eccentric screw pump is a compact injection and feed pump specially developed for construction site operation. It is particularly suitable for pumping and injecting bentonite, cement or other solid-containing slurries.
