SG-200-E

◀

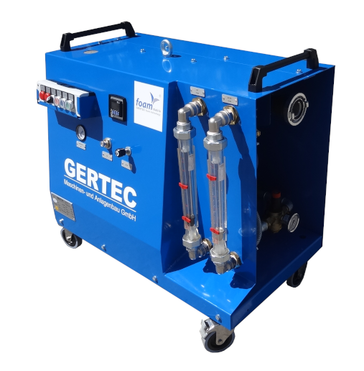

Robust and simple foam generator up to 200 l/min GERTEC
▶
Robust and simple foam generator up to 200 l/min GERTEC

Technical Data / Performance Data

Foaming capacity 2)

80 - 200

l/min

manual adjustable

Foam density 2)

30 - 100

g/dm3

manual adjustable

Foam agent dosage

0,5 – 4,0

%

manual adjustable

Water connection

GEKA-coupling

3/4“, NW 17

required

pipe pressure: > 2,0 bar

Water amount required

20

l/min



Compressed air connection

NW 7,2

plug

DIN EN ISO 228-1

required

pipe pressure: > 6,0 bar

Air volume required

230

l/min at 4 bar



Pressure connection foam

Storz C DN 40

DIN 14307



Power connection

CEE-plug

16 A

5-pole with phase inverter

Voltage

400

V; 50Hz



Protection class

65

IP



Cable length remote control

10

m



Dimensions

0,9 x 0,6 x 0,9

m

l x w x h

Weight

approx. 100

Kg



1)The specified performance data are non-binding values that differ significantly depending on their respective product features.

2) The specified engine power depends on the foam density and of their respective product features.

Application areas:

  • Production of foam
  • Production of foam concrete screed
  • Production of light levelling mortar
  • Production of foam concrete stones
