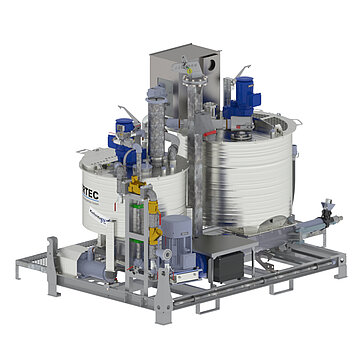

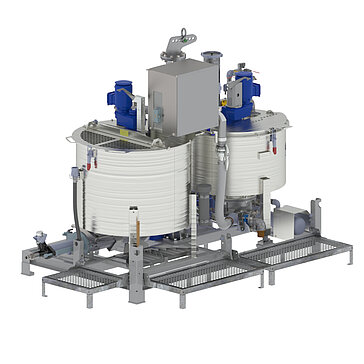

CMA-250-EA

◀
▶

Technical Data / Performance Data

Mixing capacity (with 15 batches/h)

3,75

m3/h

Effective volume mixer

 80 - 250

l

Mixing water minimum

80

l

Effective volume agitator tank

500

l

Flow rate dosing pump

15 - 60

l/min   infinitely adjustable

Discharge pressure dosing pump

max. 12

bar

Mixing components

5

1 liquid

2 solids

2 additives (Dosing unit optionally)

Solids grain size

 max. 2

mm

Pressure connection slurry pump

VT 1“; type 25

motar coupling VT 1“, alternatively 1“ IG

Water connection

Storz C

DIN14307,max.6 bar; or Geka-claw coupling

Power connection

CEE-plug

63 A, 5-pole

Power input

approx. 23

kW

Voltage

400

V, 50 Hz

Transport dimensions

2,32 x 1,47 x 2,03

m ( L x W x H)

Mixer work dimensions

2,86 x 1,90 x 2,03

m ( L x W x H)

Weight:

1200

kg



Application areas:

  • Building materials industry (mixing and dosing of slurries in the production of
    foam concrete / mineral foams)
  • Tunneling (cavity filling, injection, grouting)
  • Foundation engineering (cavity filling, injection, grouting)

Characteristics:

  • processing of bagged goods or silo goods (bagged goods with manual sack loading)
  • the flow rate of the dosing pump is infinitely adjustable
  • easy operation, maintenance and cleaning
  • minimum mounting and start-up effort
  • optimal mixing quality (colloidal mixer)
  • minimum space requirements
  • minimum operating costs
