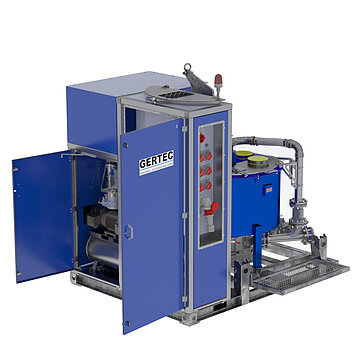

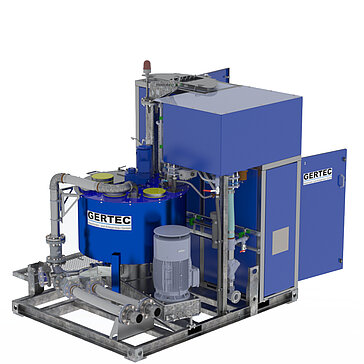

CM-500-EA (automatic)

Technical Data / Performance Data

Mixing capacity (with 24 batches/h)

12

m3/h

Effective volume mixer

500

l

Mixing water minimum

165

l

Mixer filling level (bag loading)

1150

mm

Effective volume water tank

400

l

Grain solids

 max. 2

mm

Mixing components

5

1 liquid

2 grain solids

2 additives (dosage optionally)

Water connection

Storz C

2 1/2“ standard coupling DIN 14307,              max.6 bar; oder Geka-claw coupling

Cleaning connection

DN 20

Geka- claw coupling

Power connection

CEE-plug

63 A, 5-pole

Power input

22

KW

Voltage

400

V; 50 Hz

Dimensions

1,4 x 1,8 x 2,5

m ( L x W x H)

Weight

 approx.1400

kg

Application areas:

  • Anchor injection, Ground stabilization, Rock injection
  • Drill injection
  • Jet grouting, Pipe roof grouting
  • Floor level injection
  • Geothermal applications
  • Cavity filling
  • Micro tunnelling

Mixing of:

  • Cement slurries
  • Anchor grout
  • Bentonite slurries
  • Filling material for peripheral sealing
  • Insulation slurries
  • Fly-ash slurries
