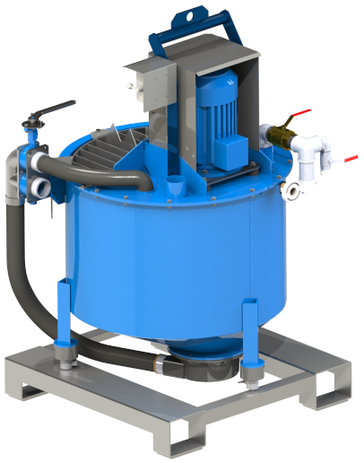

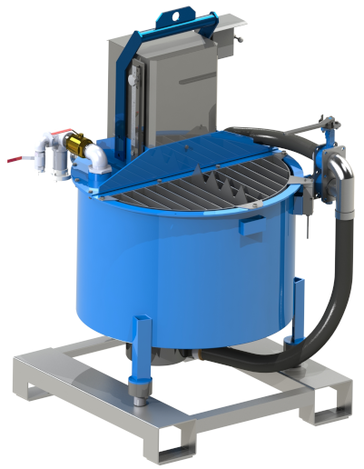

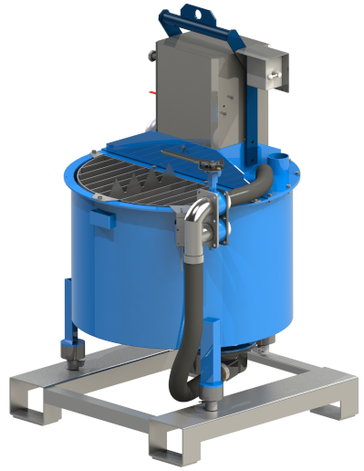

CM-280-E
◀
▶
Technical Data / Performance Data
Mixing capacity (with 20 batches/h) | 5,6 | m3/h |
Effective volume mixer | 280 | l |
Mixing water minimum | 95 | l |
Mixer filling level (bag loading) | 1040 | mm |
Solids grain size | max. 2 | mm |
Dosage liquid | 2“ | ball valve, manually |
Level indicator (rough) | 90 – 280 | l; filling bar adjustable |
Dosage solids | manually | bag loading grid |
Mixer outlet | Storz C | 2 1/2“ standard coupling DIN 14307, alternatively 2 1/2“ IG |
Water connection | Storz C | 2“ standard coupling DIN 14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 20 | Geka-claw coupling |
Power connection | CEE-plug | 16 A, 5-pole with phase inverter |
Power input | 7,5 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 1,0 x 1,0 x 1,7 | m ( L x W x H) |
Weight | approx.280 | kg |
Application areas:
- Anchor injection, Ground stabilization, Rock injection
- Drill injection
- Jet grouting, Pipe roof grouting
- Floor level injection
- Geothermal applications
- Cavity filling
- Micro tunnelling
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
