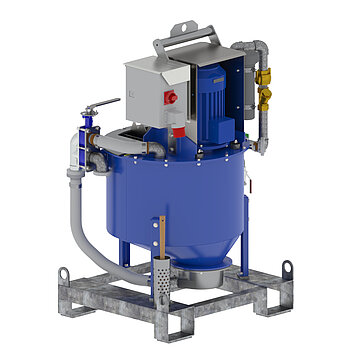

CM-150-E

[Translate to Englisch:] Kolloidalmischer Kolloidmischer Chargenmischer CM-150-E
[Translate to Englisch:] Kolloidalmischer Kolloidmischer Chargenmischer CM-150-E

Technical Data / Performance Data

Mixing capacity (with 20 batches/h)

3,0

m3/h

Effective volume mixer

150

l

Mixing water minimum

50

l

Mixer filling level (bag loading)

920

mm

Solids grain size

 max. 2

mm

Dosage liquid

11/2“

ball valve, manually

Level indicator (rough)

50 – 150

l; filling bar adjustable

Dosage solids

manually

bag loading grid

Mixer outlet

Storz C

2“ standard coupling DIN 14307,  alternatively 2“ IG

Water connection

Storz C

11/2“ standard coupling DIN 14307,      max. 6 bar; or Geka-claw coupling

Cleaning connection

DN 20

Geka-claw coupling

Power connection

CEE-plug

16 A, 5-pole with phase inverter

Power input

4,0

KW

Voltage

400

V; 50 Hz

Dimensions

0,9 x 0,85 x 1,6

m ( L x W x H)

Weight

 approx.190

kg

Application areas:

  • Anchor injection, Ground stabilization, Rock injection
  • Drill injection
  • Jet grouting, Pipe roof grouting
  • Floor level injection
  • Geothermal applications
  • Cavity filling
  • Micro tunnelling

Mixing of:

  • Cement slurries
  • Anchor grout
  • Bentonite slurries
  • Filling material for peripheral sealing
  • Insulation slurries
  • Fly-ash slurries
