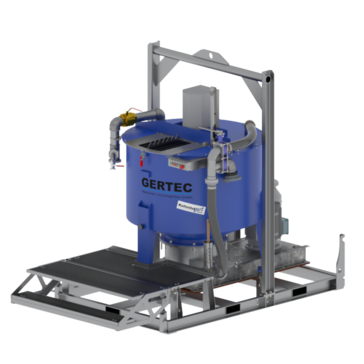

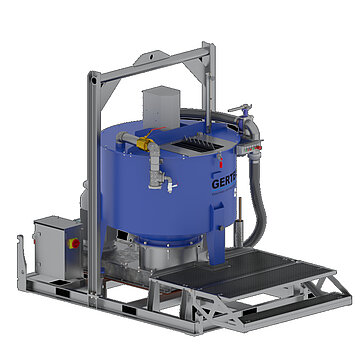

CM-1000-E
◀
▶
Technical Data / Performance Data
Mixing capacity (with 20 batches/h) | 20 | m3/h |
Effective volume mixer | 1000 | l |
Mixing water minimum | 350 | l |
Mixer filling level (bag loading) | 1150 | mm |
Solids grain size | max. 2 | mm |
Dosage liquid | 3“ | ball valve, manually |
Level indicator (rough) | 350 – 1000 | l; filling bar adjustable |
Dosage solids | manually | bag loading grid |
Mixer outlet | Storz B | 3“ standard coupling DIN 14307, alternatively 3“ IG |
Water connection | Storz B | 3“ standard coupling DIN 14307, max.6 bar |
Cleaning connection | DN 20 | Geka-claw coupling |
Power connection | CEE-plug | 63 A, 5-pole |
Power input | 22 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 2,2 x 1,8 x 2,2 | m ( L x W x H) |
Weight | approx.1100 | kg |
Application areas:
- Micro tunnelling, pipe jacking
- Anchor injection, Ground stabilization, Rock injection
- Drill injection
- Jet grouting, Pipe roof grouting
- Floor level injection
- Cavity filling
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly-ash slurries
