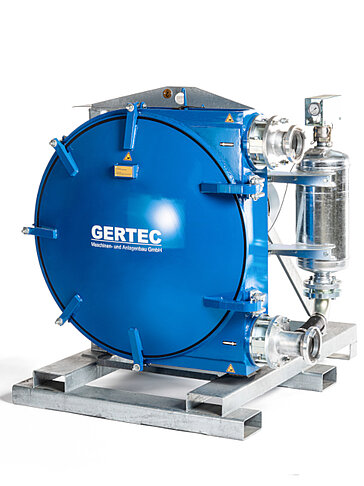

SP-1100-F
◀
▶
Technical Data / Performance Data
Flow rate | 25 - 75 | m³/h |
Discharge pressure | max. 8 | bar |
Suction lift | max. 8 | m |
Solids grain size | max. 32 | mm |
Medium temperature | max. 50 | °C |
Nominal hose diameter | 100 | mm |
Suction connection | Storz A | 4“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 |
Pressure connection | Storz A | A“ standard coupling DIN 14307, alternatively 3“ AG, flange DN80 PN16 |
Power connection | CEE-plug | 63 A, 5-pole |
Power input | 31 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 1,57 x 1,69 x 1,63 | m ( L x W x H) |
Weight | approx.1670 | kg |
Application areas:
- Building construction and Civil engineering
- Special foundation engineering, Tunnelling
Pumping of:
- Light mortar
- Foam concrete
- Slurries
- Dirty water
- or other solid-containing slurries
