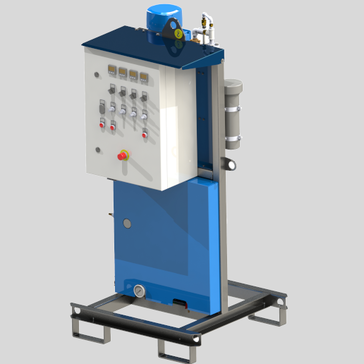

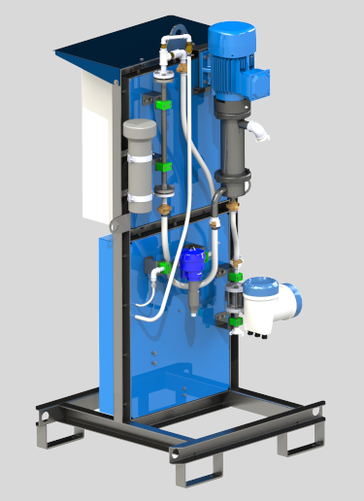

SBM-1-EA
◀
▶
Technical Data / Performance Data
| Mixing capacity | 0,9 - 1,5 | m³/h |
| Dry density foam concrete | ca. 300 - 800 | kg/m³ |
| Fresh mortar density | ca. 350 - 900 | kg/m³ |
| Output foam generator | 8 - 22 | l/min; adjustable |
| Foam density | 40 - 100 | kg/m³; adjustable |
| Foaming agent rate | 0,8 – 5,5 | %; adjustable |
| Water connection | GEKA-Kupplung 1/2“ | Line pressure ≥ 6bar |
| Water consumption | max. 2,5 | l/min |
| Pressed air connection | Stecker NW 7,2; ISO 228-1 | Line pressure ≥ 6,0 bar |
| Pressed air consumption | max. 25 | Nl/min |
| Link-up connection hose | MT 1“ | Mortar coupling |
| Link-up transport hose | VT 1“ | Mortar coupling |
| Power connection | 16 A, | CEE-plug 5-pole with phase inverter |
| Power input | ca. 1,0 | kW |
| Voltage | 400 | V; 50 Hz |
| Transport dimensions | 0,85 x 0,80 x 1,72 | m ( L x W x H) |
| Weight | ca. 155 | kg |
Application areas:
- Production of foam concrete
- Production of foam concrete screed
- Production of light levelling mortar
- Laboratory, development of building materials
- Cavity filling
