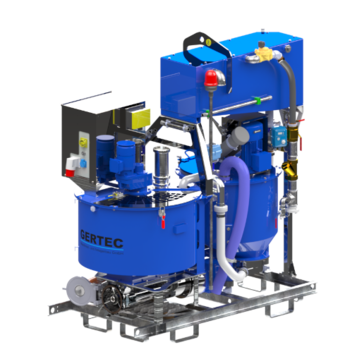

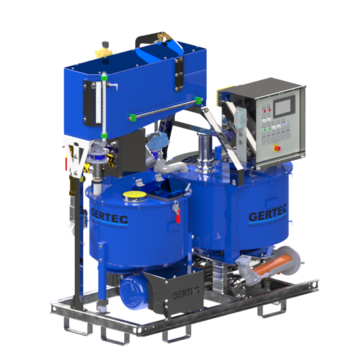

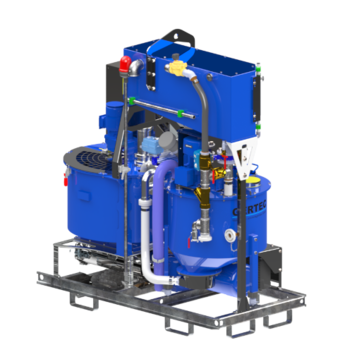

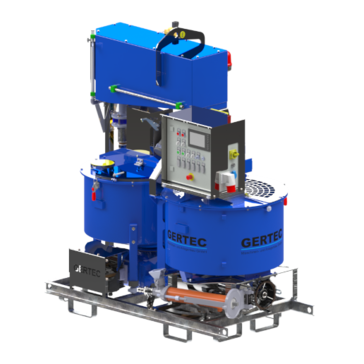

IS-35-EA
Fully automatic
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 3 | m³/h |
Amount of mixing components (automatic operation) | 2 | 1 x liquid 1 x solid |
Effective mixer volume | 150 | l |
Mixing water minimum | 50 | l |
Mixer filling level (bag loading) | 1020 | mm |
Agitator tank volume | 300 | l |
Water Tank volume | 150 | l |
Flow rate stepless adjustable | 20 - 100 | l/min |
Discharge pressure | max. 30 | bar |
Solids grain size | max. 2 | mm |
Pressure connection | VT 1“; Typ 25 | mortar coupling VT 1“,alternatively 1“ IG |
Water connection | Storz C | 1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Power connection | CEE-Stecker | 32 A, 5-pole with phase inverter |
Power input | 12,5 | KW |
Voltage | 400 | V; 50 Hz |
Start/Stop signal cement screw | Harting plug | 4-pole |
Transport dimensions approx. | 1,92x0,97x2,15 | m (L x W x H) |
Working dimensions approx. | 2,60x0,97x2,15 | m (L x W x H) |
Weight approx. | 765 | kg |
Application areas:
- Anchor injection
- Grouting
- Cavity filling
- Micro tunnelling
- Ground injection
- Bentonite lubrication
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly ash slurries
