DM-30-EC

◀

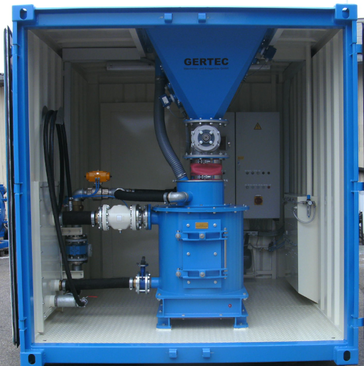

Continuous mixer Colloidal mixer Bentonite mixer Mixing plant Hydroshield
▶
Continuous mixer Colloidal mixer Bentonite mixer Mixing plant Hydroshield

Technical Data / Performance Data

Mixing capacity

8 - 30

m3/h

Slurry density

max. 1200

kg/m3

Mixing components

2

1 x liquid / 1 x solid

Solids grain size

 max. 1

mm

Dosage liquids

manual

hand control valve

Dosage solids

electrical

rotary valve with adjustable speed

Dosing capacity solids  2)

500 - 2500

kg/h 2)

Drive power mixer

18,5

kW

Mixer outlet

Storz B

3“ standard coupling DIN 14307,  alternatively 3“ IG

nnection

Storz C

2“ standard coupling DIN14307, max. 6 bar; alternatively 2” IG

Power connection

CEE-plug

63 A, 5-pole

Power input

27

kW

Voltage

400

V; 50 Hz

Dimensions

3,0 x 2,44 x 2,59

m ( L x W x H)

Weight

approx. 2500

kg

Application areas:

  • Tunnelling
  • Special foundation engineering
  • Shield tunnelling
  • Hydro shield operation
  • Diaphragm wall
  • Cut-off wall

Mixing of:

  • Bentonite slurries
  • Cut-off wall components
