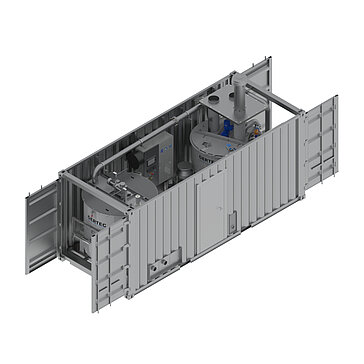

CMA-1500-EAC

◀
▶

Technical Data / Performance Data

Mixing capacity (with 27 batches/h)

approx. 40,5

m³/h

Effective volume mixer

1500

l

Mixing water minimum

500

l

Water tank volume

1400l

Agitator tank volume

3000

l

Flow rate water dosing pump

approx. 3500l/min

Grain size (powder)

 max. 2

mm

Slurry connection, output

2 x 4 "

IG

Number of mixing components

3

1 liquid

2 grain solids

2 additives (dosage optionally)

Water connection, input

3"Storz A standard coupling DIN14307

Cleaning connection

DN 25

Geka-claw coupling

Power connection

2 x 63 Aterminal block, 5-pole

Max. power input

approx. 57

(1x30 + 1x27)

kW

Voltage

400 V / 50 Hz3~

Dimensions

6,0 x 2,44 x 2,6m (L x B x H)

Weight

approx. 5800kg

Application areas:

  • Anchor injection
  • grouting
  • Cavity filling
  • Micro tunnelling
  • Ground injection
  • Bentonite lubrication

Mixing of:

  • Cement slurries
  • Anchor grout
  • Bentonite slurries
  • Filling material for peripheral sealing
  • Insulation slurries
  • Fly-ash slurries
