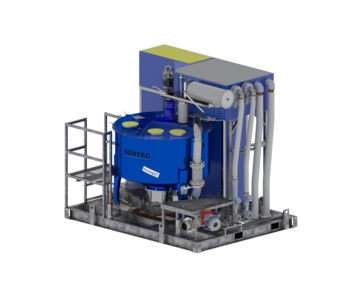

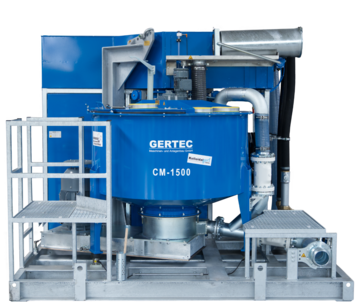

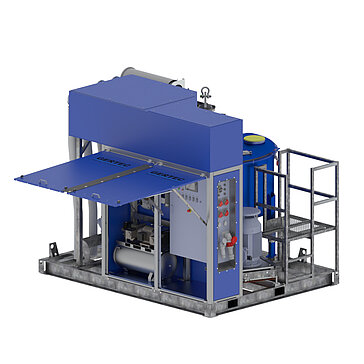

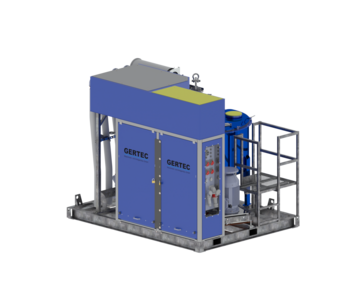

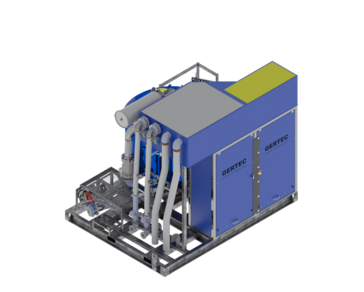

CM-1500-EA (automatic)

◀
▶

Technical Data / Performance Data

Mixing capacity (with 33 batches/h)

49,5

m³/h
W/Z = 1,0 je m³
Water: 750kg ; CEM: 750kg

Effective volume mixer

1500

l

Mixing water minimum

500

l

Effective volume water tank

1200

l

Grain solids

 max. 2

mm

Mixing components

3

1x liquid

2 solids

Dosage

gravimetric

fully electronic mixer scale

Water connection

2x Storz B

2x3“ standard coupling DIN 14307,              max.6 bar;

Cleaning connection

DN 25

Geka-claw coupling

Mixer outlet (connection)

DN 125

Perrot coupling VT

Power connection

CEE-plug

1x 63A, 5-pole; 1x 32A, 5-pole

Power input

45

KW

Voltage

400; 50

V; Hz

Dimensions

3,0 x 2,4 x 2,6

m ( L x W x H)

Weight

approx. 4100

kg

Application areas:

  • soil mixing and diaphragm-wall methods
  • Cavity filling

Mixing of:

  • Cement slurries
  • Bentonite slurries
  • Insulation slurries
