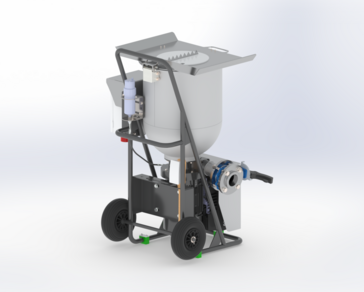

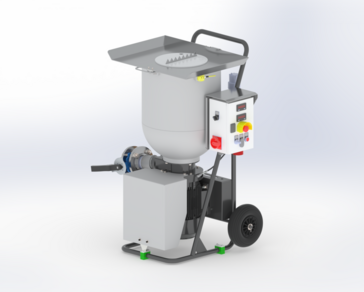

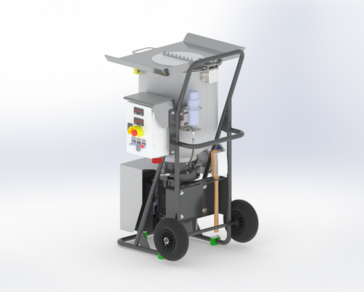

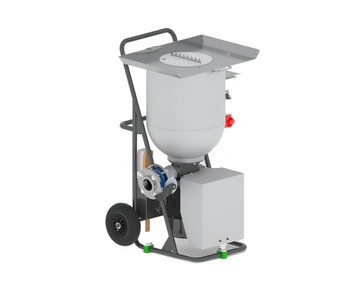

CIM-50-E
◀
▶
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 1000 | l/h |
Effective mixer volume | 20 - 50 | l |
Mixing water minimum, approx. | 20 | l |
Mixer filling level, approx. | 1100 | mm |
Solids grain size | maximum 2 | mm |
Dosage liquid | manually | filling hole mixer cover |
Dosage solid(s) | manually | filling hole mixer cover |
Mixer outlet | DN 65 |
|
Power connection | CEE-plug | 16 A, 5-pole with phase inverter |
Power input | 5,5 | KW |
Voltage | 400 | V; 50 Hz |
Dimensions | 0,7 x 0,75 x 1,2 | m ( L x W x H) |
Weight approx. | 150 | kg |
Mixing of:
- Cement slurries
- Anchor grout
- Bentonite slurries
- Filling material for peripheral sealing
- Insulation slurries
- Fly ash slurries
- Anhydrite slurries
- other solid-content suspensions (after technical clarification)
